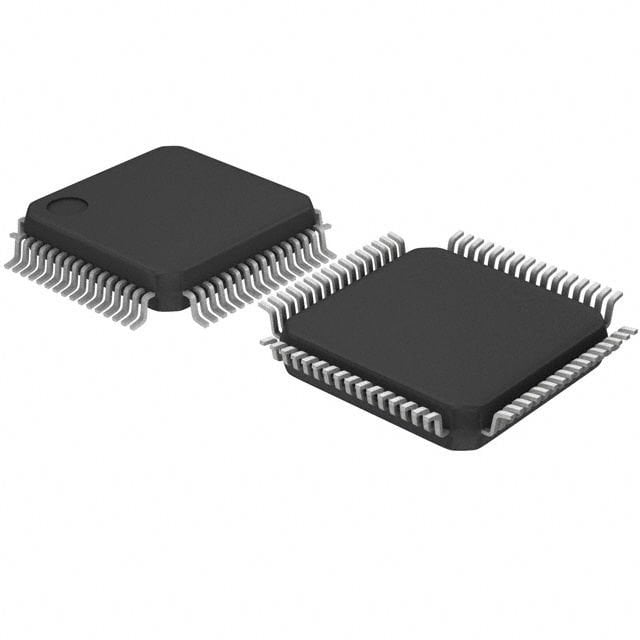

FTDI FT4232HL-REEL Interface Bridges,

163,86 TL

*15,26 TL den başlayan taksitlerle!

Kategori

Elektrik & Elektronik , Entegre Devreler

Stok Kodu

ICD GEN 00026

Stok :

180

USD Birim Fiyat:

4.2 USD + KDV

SEPETE EKLE

The FT4232HL-R is a quad high speed USB 2.0 (480Mb/s) to multipurpose UART/MPSSE IC in 64 pin LQFP package. This 5th generation of USB device features four UARTs. Two of these have an option to independently configure an MPSSE engine. This allows FT4232H to operate as two UART/bit-bang ports plus two MPSSE (Multi Protocol Synchronous Serial Engine) engines used to emulate JTAG, SPI, I2C, bit-bang or other synchronous serial modes.

Entire USB protocol handled on the chip and no USB specific firmware programming required
USB 2.0 high speed (480Mbits/s) and full speed (12Mbits/s) compatible
Independent baud rate generators
RS232/RS422/RS485 UART transfer data rate up to 12Mbaud
Adjustable receive buffer timeout

ÜRÜN YORUMLARI

Bu ürüne ilk yorumu siz yapın!

Yorum Yaz

TEKNIK DOKUMAN

Datasheet

Supply Voltage Min: 1.62V
Supply Voltage Max: 1.98V
No. of Pins: 64Pins
Operating Temperature Min: -40°C
Operating Temperature Max: 85°C

FTDI FT4232HL-REEL Interface Bridges,
