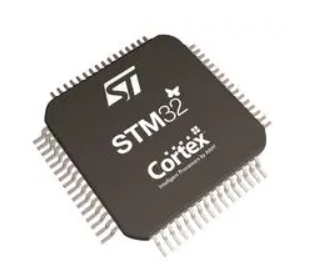

STMICROELECTRONICS STM32F446RCT6

ARM MCU, High Performance, STM32 Family STM32F4 Series Microcontrollers, ARM Cortex-M4, 32 bit

Microcontroller with ARM® 32bit Cortex®-M4 CPU + FPU, frequency up to 180MHz in 64 pin LQFP package
256Kbytes of flash memory, 128Kbytes system/4Kbytes of backup SRAM
LCD parallel interface, 8080/6800 modes
1.7V to 3.6V application supply and I/Os, 4 to 26MHz crystal oscillator
50 GPIO, two 12bit ADC (16 channels), 2 x 12bit D/A converters
General-purpose DMA (16-stream DMA controller with FIFOs and burst support)
10 general purpose, 2 advanced control, 2 basic timers
SWD & JTAG interfaces, Cortex-M4 Trace Macrocell™
CRC calculation unit, camera interface
SPI / I2S, I2C, USART/UART, USB OTG FS/HS, CAN, SAI, SDIO, SPDIF-Rx, HDMI-CEC, Quad SPI
