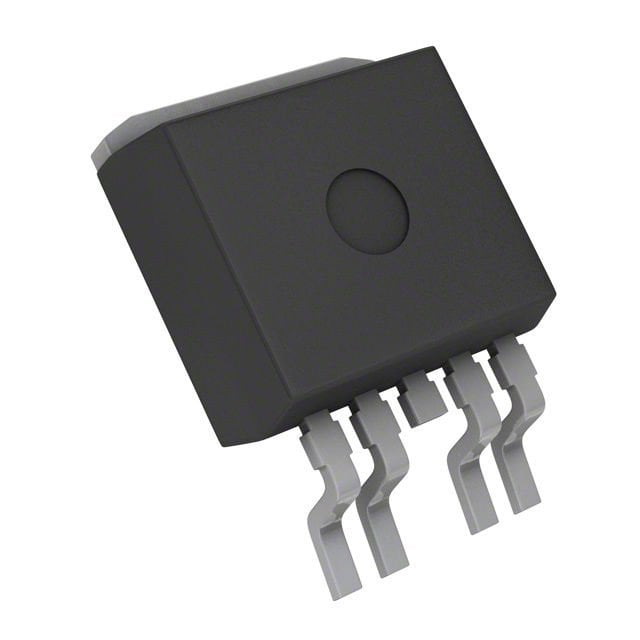

INFINEON BTS441RGATMA1 HIGH SIDE POWER DRIVER
YENİ

INFINEON BTS441RGATMA1 HIGH SIDE POWER DRIVER

152,15 TL
*14,17 TL den başlayan taksitlerle!
Kategori
Elektrik & Elektronik , Entegre Devreler
Stok Kodu
ICD GEN 00041
Stok :
1000
USD Birim Fiyat:
3.9 USD + KDV
ÜRÜN AÇIKLAMASI
ÜRÜN YORUMLARI
TEKNIK DOKUMAN
ÜRÜN AÇIKLAMASI
The BTS441RG is a high side Power Switch N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. Fully protected by embedded protection functions.
  • Fits for 12 and 24V application
  • Overload protection
  • Current limitation
  • Short-circuit protection
  • Thermal shutdown
  • Overvoltage protection (including load dump)
  • Fast demagnetization of inductive loads
  • Reverse battery protection with external resistor
  • Open drain diagnostic output for over temperature and short-circuit
  • Open load detection in OFF-state with external resistor
  • CMOS compatible input
  • Loss of ground and loss of Vbb protection
  • Very low standby current
  • Green product
  • AEC qualified
  • Negative voltage clamped at output with inductive loads
  • Flags a fail event (Status pin)
ÜRÜN YORUMLARI
Bu ürüne ilk yorumu siz yapın!
Yorum Yaz
TEKNIK DOKUMAN

Datasheet
: High Side
: 43V
: 65A
: 0.015ohm
: TO-263 (D2PAK)
: 5Pins
: Yes
: -
: 1Outputs
: -40°C
: 150°C
: -
: -
: MSL 1 - Unlimited
INFINEON BTS441RGATMA1 HIGH SIDE POWER DRIVER Power Management (PMIC) Power Distribution Switches, Load Drivers Mfr Infineon Technologies Series PROFET® Package Tape & Reel (TR) Cut Tape (CT) Digi-Reel® Product Status Active Switch Type General Purpose Number of Outputs 1 Ratio - Input:Output 1:1 Output Configuration High Side Output Type N-Channel Interface On/Off Voltage - Load 4.75V ~ 43V Voltage - Supply (Vcc/Vdd) Not Required Current - Output (Max) 17A Rds On (Typ) 15mOhm Input Type Non-Inverting Features Status Flag Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage Operating Temperature -40°C ~ 150°C (TJ) Mounting Type Surface Mount Supplier Device Package PG-TO263-5-2 Package / Case TO-263-5, D2PAK (4 Leads + Tab), TO-263BB Base Product Number BTS441 ICD GEN 00041
INFINEON BTS441RGATMA1 HIGH SIDE POWER DRIVER
